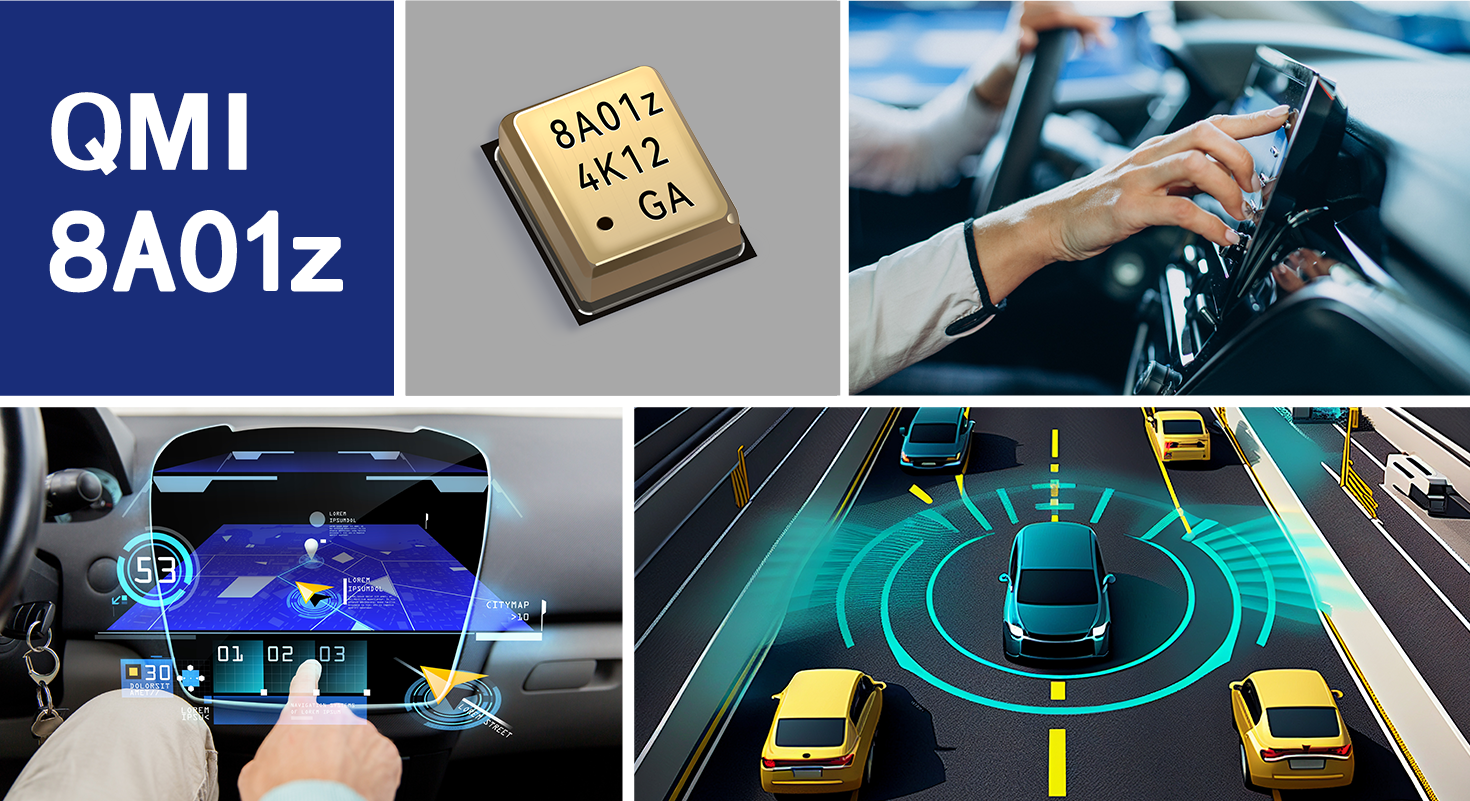

The QMI8A01z is a complete 6D MEMS inertial measurement unit (IMU). With tight board-level gyroscope sensitivity of ±1%, low latency, and AEC-Q100 Grade 2 qualification, the QMI8A01z is ideal for industrial and automotive applications.
The QMI8A01z incorporates a 3-axis gyroscope and a 3- axis accelerometer. It provides a host-processor interface supporting I2C and 3-wire or 4-wire SPI.
With its built-in digital functionality, low power, and small size, the QMI8A01z is the ideal part for applications requiring motion-based functionality.
? Low 13 mdps/√Hz gyroscope noise
? Low 150μg/√Hz accelerometer noise
? Host (slave) interface supports MIPI? I3C, I2C, and 3-wire or 4-wire SPI
? Accelerometer and gyroscope sensors feature signal processing paths with digitally programmable data rates and filtering
? 3-axis gyroscope and 3-axis accelerometer in a small 3.0 x 3.5 x 1.1 mm 14-pin LGA package
? Large 1536-byte FIFO can be used to buffer sensor data to lower system power dissipation
? Integrated Tap, Any-Motion, No-Motion, SignificantMotion detection
? Large sensor dynamic ranges from ±16°/s to ±2048°/s for gyroscope and ±2g to ±16g for accelerometer
? Low power modes for effective power management
? Digitally programmable sampling rate and filters
? Embedded temperature sensor
? Wide extended operating temperature range (-40°C to 85°C)
